Frame registration and cell detection for 2-photon recordings

from pathlib import Path
import logging
import numpy as np
import einops
import skimage
from functools import partial
import multiprocessing as mp


_logger = logging.getLogger(__name__)


def detect_and_shift(src, target, filter_fn=None):
    """Calculate a transform to convert the src image to look like target.

    Steps:

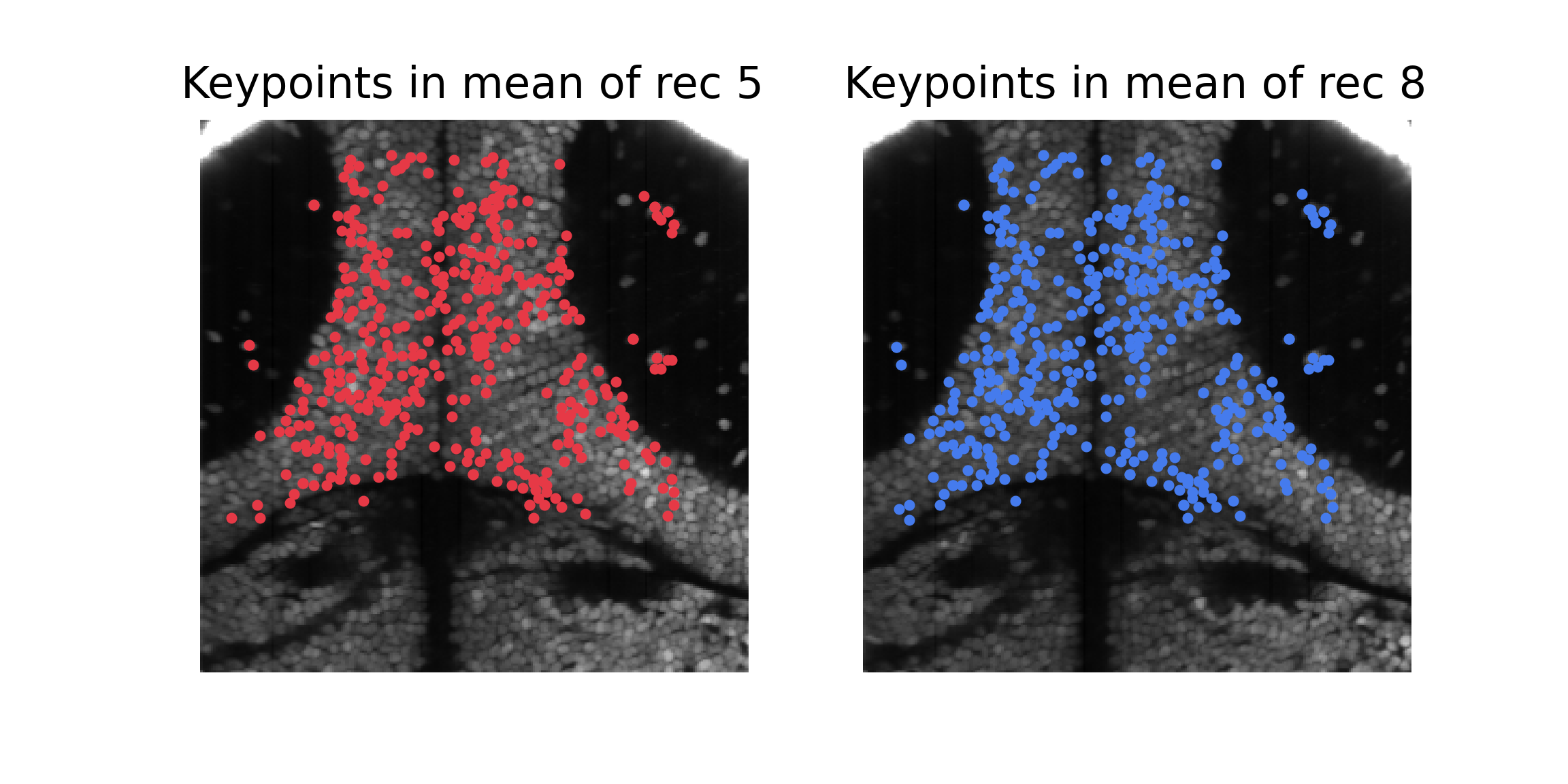

        1. Calculate SIFT image keypoints in both images.
        2. Retain only the keypoints present in both images.
        3. Retain only the keypoints within the area we are most concerned
           about. The point of this step is that we don't care so much about
           the other areas and are fine if they shift around. If we included
           keypoints from all areas, then a more modest transform would be
           produced that goes for a consensus across the whole image. Instead,
           we are happy for less interesting parts of the image to shift so
           that we keep interesting areas as steady as possible.
        4. Use off-the-shelf RANSAC optimizer to choose a matrix transform that
           moves target points to src points. The inverse of this transform will
           be used by skimage.transform.warp to transform the src image
           towards the target image.
    """
    # 1. Extract keypoints
    # c_dog has been reduced quite a bit from the default. Reducing c_dog
    # allows lower contrast features to be included. Some of the most salient
    # areas of the images are quite low contrast, so I reduced this value.
    extractor = skimage.feature.SIFT(
        n_octaves=2,
        n_scales=5,
        sigma_min=1.0,
        sigma_in=0.1,
        c_edge=5,
        c_dog=0.005,
        upsampling=1,
    )
    extractor.detect_and_extract(src)
    kp_src, desc_src = extractor.keypoints, extractor.descriptors
    extractor.detect_and_extract(target)
    kp_target, desc_target = extractor.keypoints, extractor.descriptors

    # 2. Match and filter keypoints.
    # 2.1. Match descriptors
    matches = skimage.feature.match_descriptors(
        desc_src, desc_target, max_ratio=0.6, cross_check=True
    )
    # Check if there are enough matches
    if (
        matches.shape[0] < 2
    ):  # At least 2 points needed for translation + scaling
        raise ValueError("Not enough matches to estimate transformation.")

    # 2.2 Filter
    if filter_fn is not None:
        matches = np.array(
            [
                m
                for m in matches
                if filter_fn(kp_src[m[0]]) and filter_fn(kp_target[m[1]])
            ]
        )

    # Extract matched points
    points_src = kp_src[matches[:, 0]]
    points_target = kp_target[matches[:, 1]]

    # 3. Transform
    # 3.1 Robust affine transformation estimation using RANSAC
    model, inliers = skimage.measure.ransac(
        # https://stackoverflow.com/a/62332179/754300
        # https://github.com/scikit-image/scikit-image/issues/1749
        (np.flip(points_target, axis=-1), np.flip(points_src, axis=-1)),
        skimage.transform.AffineTransform,
        min_samples=8,
        residual_threshold=1,
        max_trials=1000,
        rng=np.random.default_rng(123),
    )

    if not inliers.any():
        raise ValueError("RANSAC failed to find a valid transformation.")

    # Alternative:
    # tform = skimage.transform.AffineTransform()
    # tform.estimate(points_target, points_src)

    # 3.2 Apply the transformation
    aligned_img = skimage.transform.warp(
        src.astype(np.float32),
        model,
        output_shape=target.shape,
        preserve_range=False,
    )

    return points_src, points_target, aligned_img, model


def clip_and_norm(img):
    """Clip and normalize. The range is determined by the 2-photon setup."""
    r = (54600, 55000)
    img = np.clip(img, a_min=r[0], a_max=r[1]) - r[0]
    img = img / (r[1] - r[0])
    return img


def mean_clip_norm(x):
    """Mean clip and norm (defined here for multiprocessing)"""
    return clip_and_norm(x.mean(axis=0))

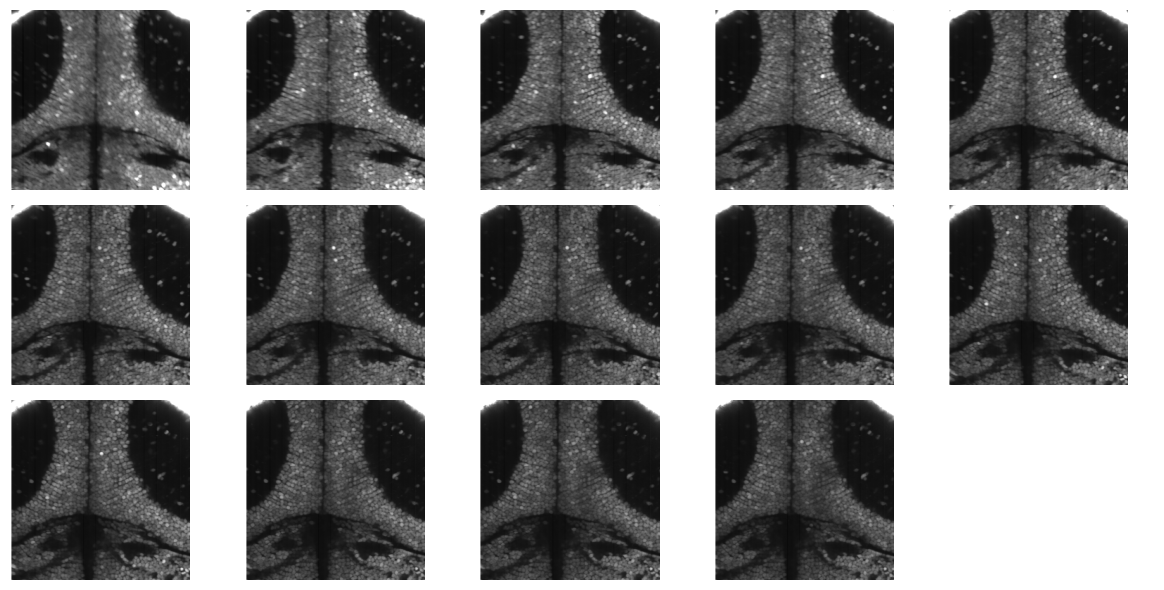

def rec_registration(rec, ref_img=None, n_batch=1, filter_fn=None):
    """Run registration on chunks of a recording, targeting ref_img.

    The recording is split into n_batch chunks, and each chunk is
    registered against the reference image. If ref_img is not provided,
    the mean of the middle chunk is used as the reference image.

    Larger chunks mean more stable registration, as the mean of larger chunks
    is less affected by the activity of the cells. But larger chunks mean
    fewer chunks, which means fewer transformations cover the recording.

    For frames within a chunk, the transformation used is a linear interpolation
    between neighbouring transformations.
    """
    B = len(rec) // n_batch
    # l_B is our designated "mid" point.
    l_B = B // 2
    u_B = (B + 1) // 2
    print(f"{len(rec)=}, {B=}, {l_B=}, {u_B=}")
    # Get mids by edges+l_B (only need lhs, so throw away last)
    mids = np.arange(0, len(rec) + 1, B)[:-1] + l_B
    assert len(mids) == n_batch, (len(mids), n_batch, mids)
    chunks = [rec[m - l_B : m + u_B] for m in mids]
    if ref_img is None:
        """If no reference image is given, use the middle chunk."""
        ref_img = clip_and_norm(chunks[len(chunks) // 2].mean(axis=0))

    def interp(T0, T1, p0, p1, query_idx):
        """Linear interpolation between two transforms."""
        assert p1 > p0
        dT = T1 - T0
        rel = (query_idx - p0) / (p1 - p0)
        res = T0 + rel * dT
        return res

    with mp.Pool(min(len(chunks), mp.cpu_count())) as pool:
        chunk_aves = []
        pool.map_async(
            mean_clip_norm, chunks, callback=chunk_aves.extend
        ).wait()
        img_models = []

        worker_fn = partial(
            detect_and_shift, target=ref_img, filter_fn=filter_fn
        )
        pool.map_async(
            worker_fn,
            chunk_aves,
            callback=img_models.extend,
            error_callback=lambda e: _logger.error(str(e)),
        ).wait()
        if len(img_models) != len(chunk_aves):
            assert len(img_models) < len(chunk_aves)
            raise ValueError(
                "Not enough models returned. Most likely one of the chunks "
                "didn't have enough shared features with the reference image. "
                f"{len(img_models)=}, {len(chunk_aves)=}"
            )
        Ts = [x[3].params for x in img_models]
        ts = []
        warp_ts = []
        for f in range(len(rec)):
            # Don't go past the 2nd last chunk.
            t0_idx = min(n_batch - 1, f // B)
            t1_idx = min(n_batch - 1, t0_idx + 1)
            idx0 = t0_idx * B + l_B
            idx1 = t1_idx * B + l_B
            if idx0 == idx1:
                t = Ts[t0_idx]
            else:
                t = interp(Ts[t0_idx], Ts[t1_idx], idx0, idx1, f)
            warp_ts.append(t)
            # Revert the x-y coordinates introduced by inconsistencies of skimage.
            yx_t = t.copy()
            tmp = yx_t.copy()
            yx_t[0, 0] = tmp[1, 1]
            yx_t[0, 1] = tmp[1, 0]
            yx_t[0, 2] = tmp[1, 2]
            yx_t[1, 0] = tmp[0, 1]
            yx_t[1, 1] = tmp[0, 0]
            yx_t[1, 2] = tmp[0, 2]
            ts.append(yx_t)
        frames = pool.starmap(
            partial(skimage.transform.warp, preserve_range=True),
            [(rec[i].astype(np.float32), warp_ts[i]) for i in range(len(rec))],
        )
        frames = np.array(frames)
    assert frames.shape[1] == frames.shape[2] == rec.shape[1]
    ts = np.array(ts)
    return (frames, ts)

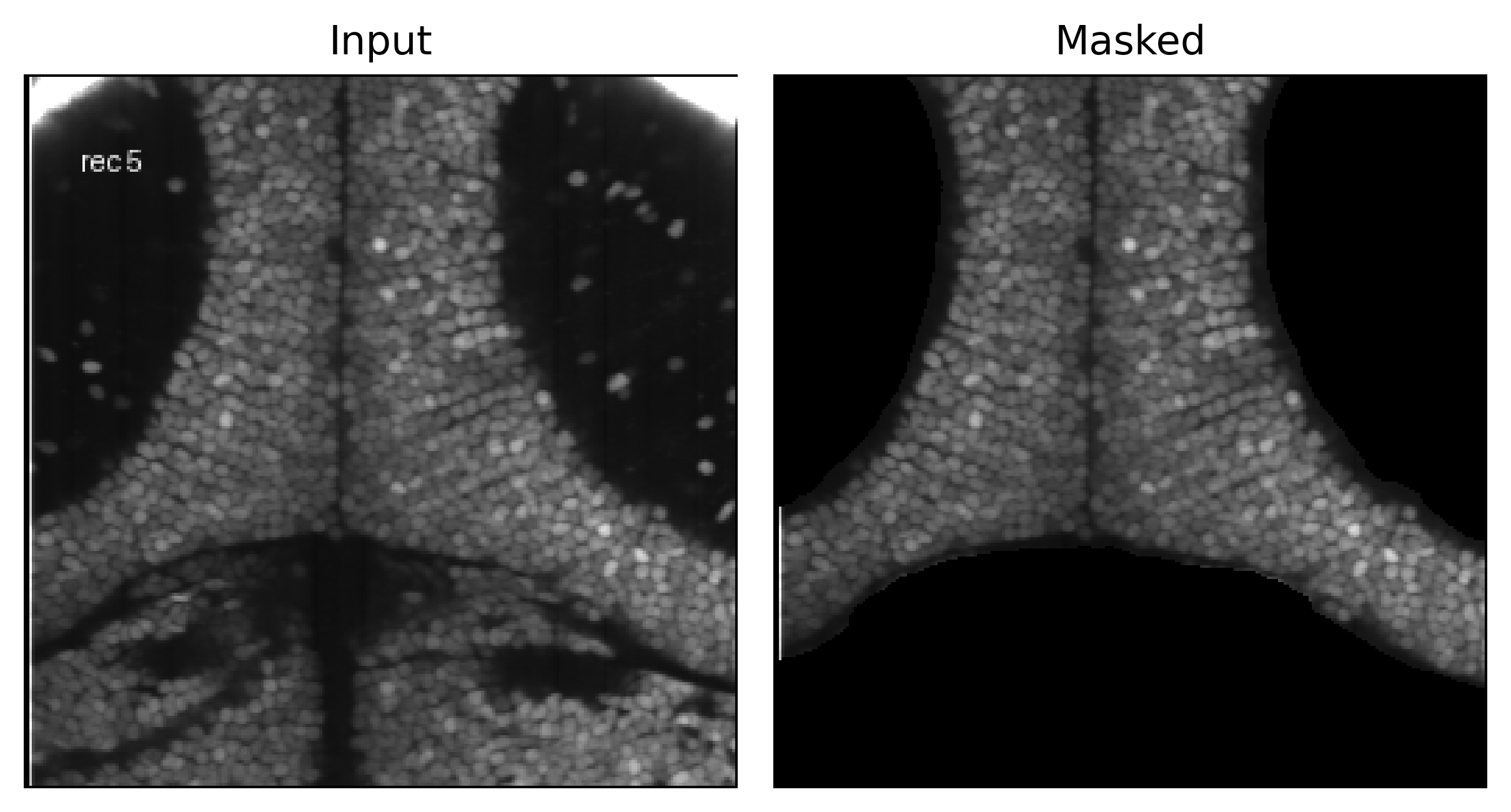

masked = brush_mask(in_img)
    fig1, ax = plt.subplots(1, 2)
    ax[0].imshow(in_img, cmap="gray")
    ax[1].imshow(masked, cmap="gray")
    ax[0].set_title("Input")
    ax[1].set_title("Masked")
    ax[0].set_axis_off()
    ax[1].set_axis_off()
    fig1.tight_layout()

    blobs_log = skimage.feature.blob_log(
        masked,
        min_sigma=1.2,
        max_sigma=2,
        threshold=0.035,
        overlap=0.1,
        threshold_rel=0.10,
        exclude_border=12,
    )
    blobs_dog = skimage.feature.blob_dog(
        masked,
        min_sigma=1.4,
        max_sigma=2,
        threshold=0.04,
        overlap=0.2,
        threshold_rel=0.05,
        exclude_border=12,
    )
    blobs_doh = skimage.feature.blob_doh(
        masked,
        min_sigma=0.0,
        max_sigma=3,
        threshold=0.002,
        overlap=0.2,
        threshold_rel=0.003,
    )
    # Compute radii in the 3rd column.
    blobs_log[:, 2] = blobs_log[:, 2] * math.sqrt(2)
    blobs_dog[:, 2] = blobs_dog[:, 2] * math.sqrt(2)
    blobs_list = [blobs_log, blobs_dog, blobs_doh]
    colors = ["yellow", "lime", "red"]

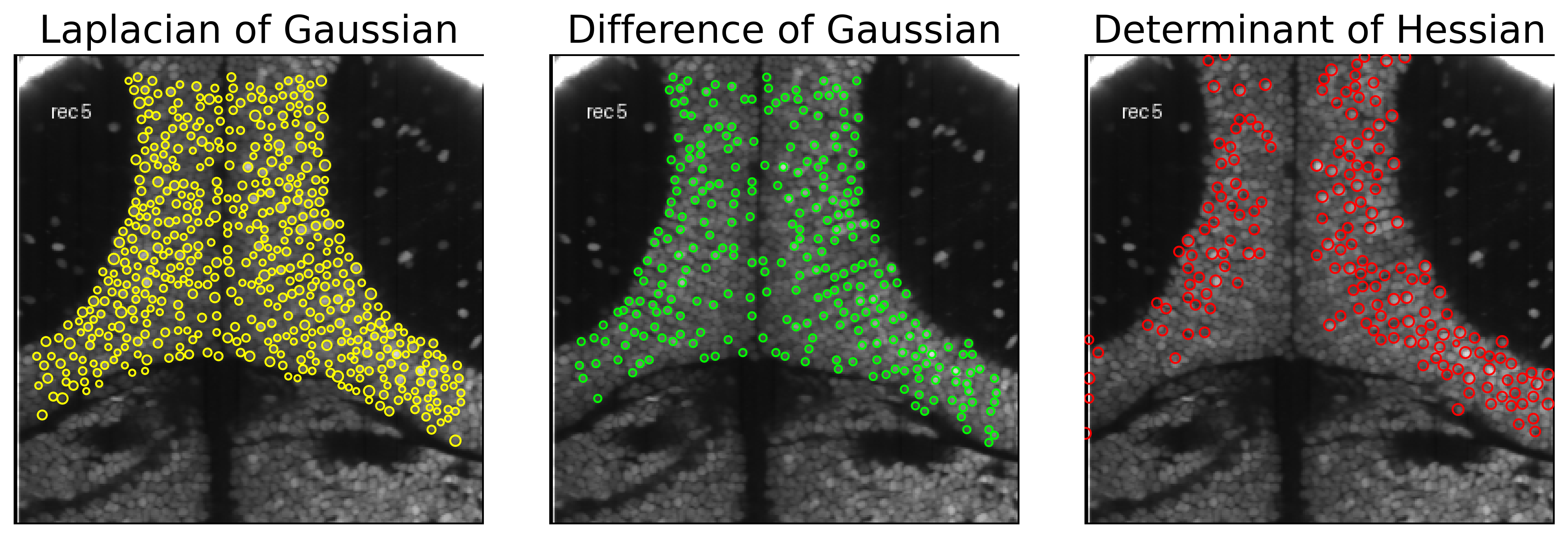

    titles = [
        "Laplacian of Gaussian",
        "Difference of Gaussian",
        "Determinant of Hessian",
    ]
    sequence = zip(blobs_list, colors, titles)

    fig2, axes = plt.subplots(1, 3, figsize=(12, 4), sharex=True, sharey=True)
    fig2.tight_layout()
    ax = axes.ravel()

    for idx, (blobs, color, title) in enumerate(sequence):
        ax[idx].set_title(title)
        ax[idx].imshow(in_img, cmap="gray")
        for blob in blobs:
            y, x, r = blob
            c = plt.Circle((x, y), r, color=color, linewidth=1, fill=False)
            ax[idx].add_patch(c)
        ax[idx].set_axis_off()
    return fig1, fig2

def blob_rois(img):
    y_x_r = skimage.feature.blob_log(
        img,
        min_sigma=1.2,
        max_sigma=2,
        threshold=0.035,
        overlap=0.1,
        threshold_rel=0.10,
        exclude_border=12,
    )
    # Compute radii in the 3rd column.
    y_x_r[:, 2] = y_x_r[:, 2] * math.sqrt(2)
    # Sort by y, then x, ignore r.
    # In numpy, use lexsort. The last arg, y, is primary.
    sorted_indices = np.lexsort((y_x_r[:, 1], y_x_r[:, 0]))
    y_x_r = y_x_r[sorted_indices]
    return y_x_r


def transform_rois(T, rois):
    """Transform blob regions of interest with a 2D affine transform."""
    # T is a 2D affine transform.
    rois_yx = rois[:, :2]
    rois_yx_homo = np.concatenate([rois_yx, np.ones([len(rois_yx), 1])], axis=1)
    # [N, 3] <- ([3,3] @ [3, N]).T
    transformed_yx = (T @ rois_yx_homo.T).T

    # We want transform radii by scaling.
    radii = rois[:, 2]
    # Just approximate a scale
    scale_y = np.sqrt(T[0, 0] ** 2 + T[0, 1] ** 2)  # Scale along y
    scale_x = np.sqrt(T[1, 0] ** 2 + T[1, 1] ** 2)  # Scale along x
    mean_scale = (scale_y + scale_x) / 2  # Mean of the scales
    transformed_radii = radii * mean_scale

    res_rois = np.concatenate(
        [transformed_yx[:, :2], transformed_radii[:, np.newaxis]], axis=1
    )
    return res_rois
